小功率機械摩擦式無級變速器結構設計
- 文件介紹：

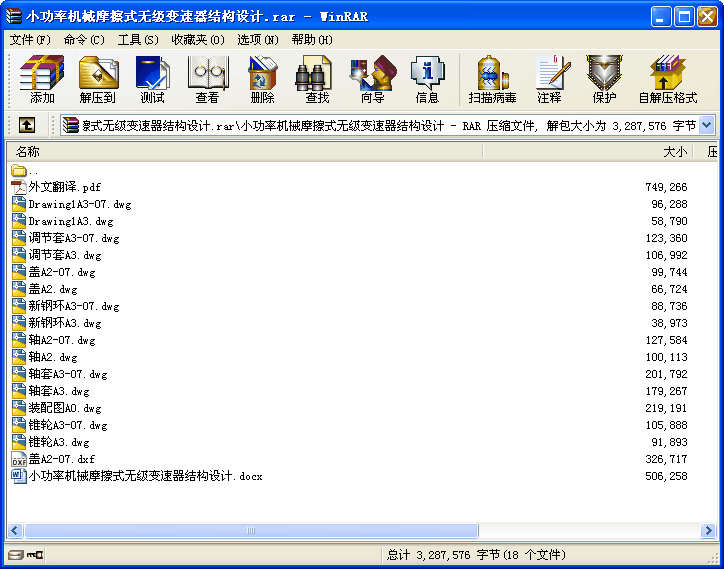

- 該文件為 rar 格式（源文件可編輯），下載需要
20 積分
-
- 小功率機械摩擦式無級變速器結構設計
目 錄
摘要 2
Abstract: 3
第一章 緒論 4
§1.2 機械無級變速器的特征和應用 5
§1.3機械無級變速器的選用和潤滑密封 7
§1.4 本文的主要內容及要求 9
第二章 摩擦無級變速器的機械特性加壓裝置和調速機構 10
§2.1 機械特性 10
§2.2 調速操縱機構 11
§2.3 加壓裝置 12
第三章 摩擦式無級變速器設計說明和計算過程 13
§3.1 摩擦機械無級變速器的工作原理 13
§3.2 摩擦無級變速器的特點 14
§3.3 錐輪的設計與計算 14
§3.4 鋼環的設計與計算 18
1、鋼環尺寸和參數的確定 18
2、強度驗算 21
§3.5 軸系的設計 21
§3.6 軸的結構設計 22
第四章 主要零件的校核 24
§4.1 ．輸出，輸入軸的校核 24
§4.2 . 軸承的校核 25
總 結 26
致 謝 27
參考文獻資料 28
附 錄： 文獻翻譯………………………………………………………29
摩擦式機械無級變速器結構設計
摘要
在某種控制的作用下，使機器的輸出軸轉速可在兩個極值范圍內連續變化的無級變速器傳動隨著機械、材質及加工工藝的高速發展和其需求量日益增多而得到廣泛應用和發展。無級變速器的主動和從動兩根軸通過傳遞轉矩的中間介質（機械構件、流體、電磁流等）把兩根軸直接或間接地聯系起來并傳遞動力。當對主、從動軸的聯系關系進行控制時，則兩軸間的傳動比發生變化（在兩極值范圍內連續而任意地變化）。用機械構件作為中間介質的為機械無級變速器，其包括摩擦式和脈動式。無級變速器與定傳動比傳動及有級變速傳動（它只有有限的幾種傳動比）相比，其優點是能夠根據工作需要在一定范圍內連續變換速度，以適應輸出轉速和外界負載變化的要求，摩擦式機械無級變速器依靠傳動元件之間的摩擦進行傳動，鋼材材質、加工工藝水平和潤滑油料品質等因素是摩擦式機械式無級變速器不斷發展的重要保證。本文通過查閱相關的諸多文獻和書籍手冊等進行鋼環式無級變速器原理及其結構、變速原理的傳動結構的實現的研究，并對摩擦式機械無級變速器進行結構設計，可直接作為設計文件或指導文件進行生產加工。
關鍵詞：無級變速器；摩擦式；傳動；潤滑；
The structure design of CVT machine of friction type
Abstract:
Under the action of some kind of control which can make the output of the machine spindle speed in two extreme CVT within the framework of the continuous variation of the transmission with the high-speed development of machinery, materials and processing technology and its demand is growing and is widely used and CVT transmission of the driving and driven by passing two shaft torque in the middle of the medium (mechanical components, fluid, electromagnetic flow, etc.), the two shaft linked directly or indirectly, and transfer power.When were related to the Lord, driven shaft to control, is the ratio between the two axis change (within the scope of the two extreme consecutive and arbitrarily change).With mechanical components as a medium for mechanical CVT, among which include friction and pulsation.CVT and constant transmission ratio transmission and continuously variable transmission (it's only a limited number of transmission ratio), compared to its advantage is the ability to work according to the need to continuous transformation rate within a certain scope, to adapt the demand of output speed and external load, the friction type CVT depend on mechanical transmission device for transmission, the friction between the steel material, processing technology level and the quality of lubricating oil is factors such as friction type mechanical stepless transmission the important guarantee of continuous development.This article through the consult literature and books, manuals, etc for the steel ring type stepless transmission principle and structure, the realization of the principle of variable speed drive structure research, and the friction type mechanical CVT structure design, can be directly as a guide for design documents or files for production and processing.
Keyword:CVT;Friction type;Transmission;Lubrication;
...
